Product Details

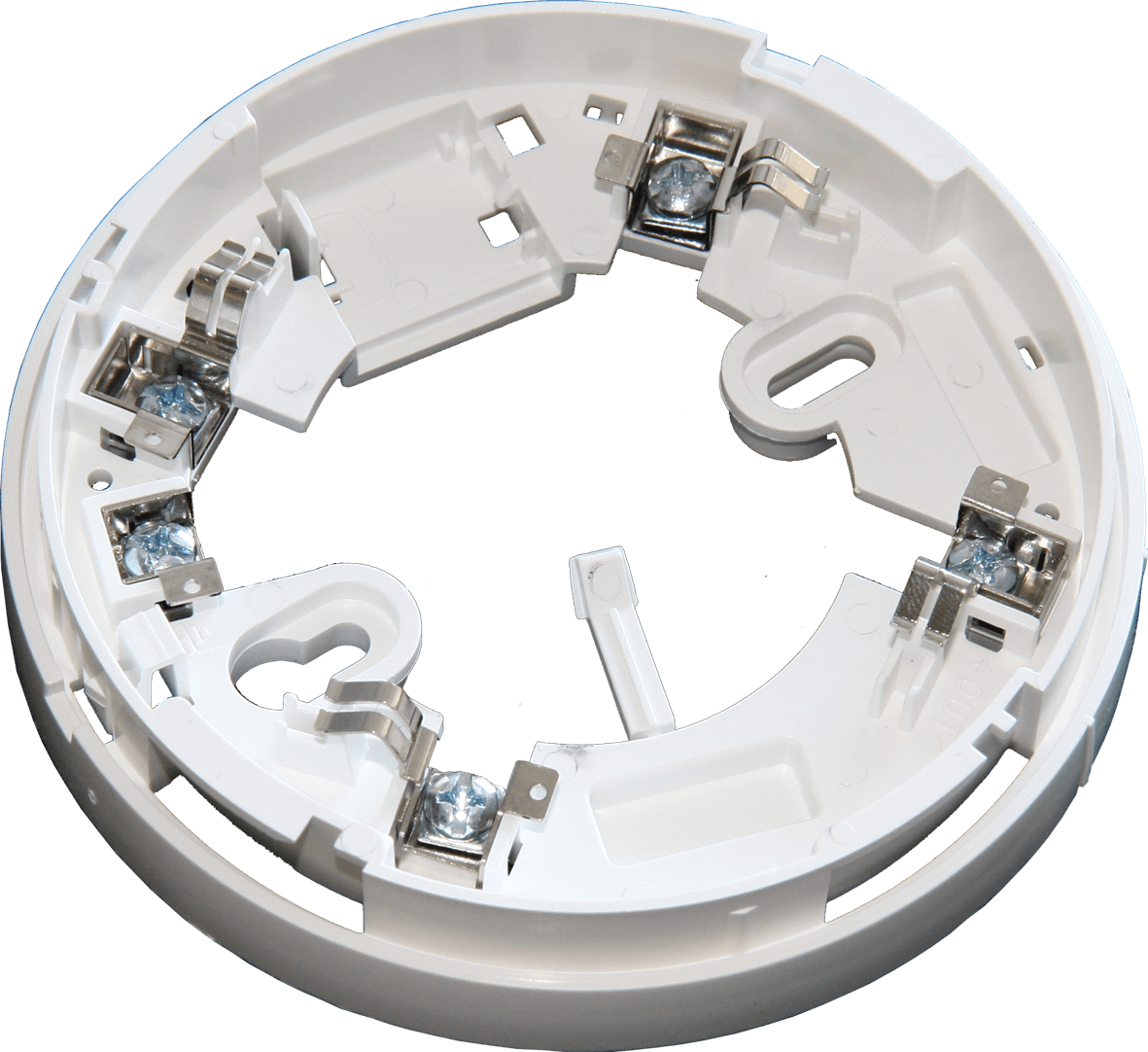

SensoMAG B24D is a standard base with Schottky diode

Download datasheet

Rs.1000 Rs.800

  • Category : Conventional Fire Detection & Alarm System
  • SKU : 31060033

SensoMAG B24D is a standard base with Schottky diode for detection for removed detector from its base.

The base is designed for conventional detectors SensoMAG series: F10, F10B, R20, S30 and M40. The base is with low profile design and reliable contact system. It is possible to lock the detector to the base for extra security.

SPECIFICATIONS:

  • Detects removal of detector from base
  • Compatible with fire panels with alarm state current up to 15 mA
Wire Gauge for terminals3.0mm
Operating temperature-10°C to +60°C
Relative humidity resistance(93 ± 3)% @ 40°C
Weight~42g
Dimensions102x11mm
Material (plastic), colorABS, white

 ** Price are subject to change at anytime. Please confirm via email as no payment gateway is connected.

Color White
Brand Teletek Electronics JSC
Origin Europe
Seller's Warranty 1 Year
