Category : Addressable Fire Detection & Alarm System
SKU : 31020075

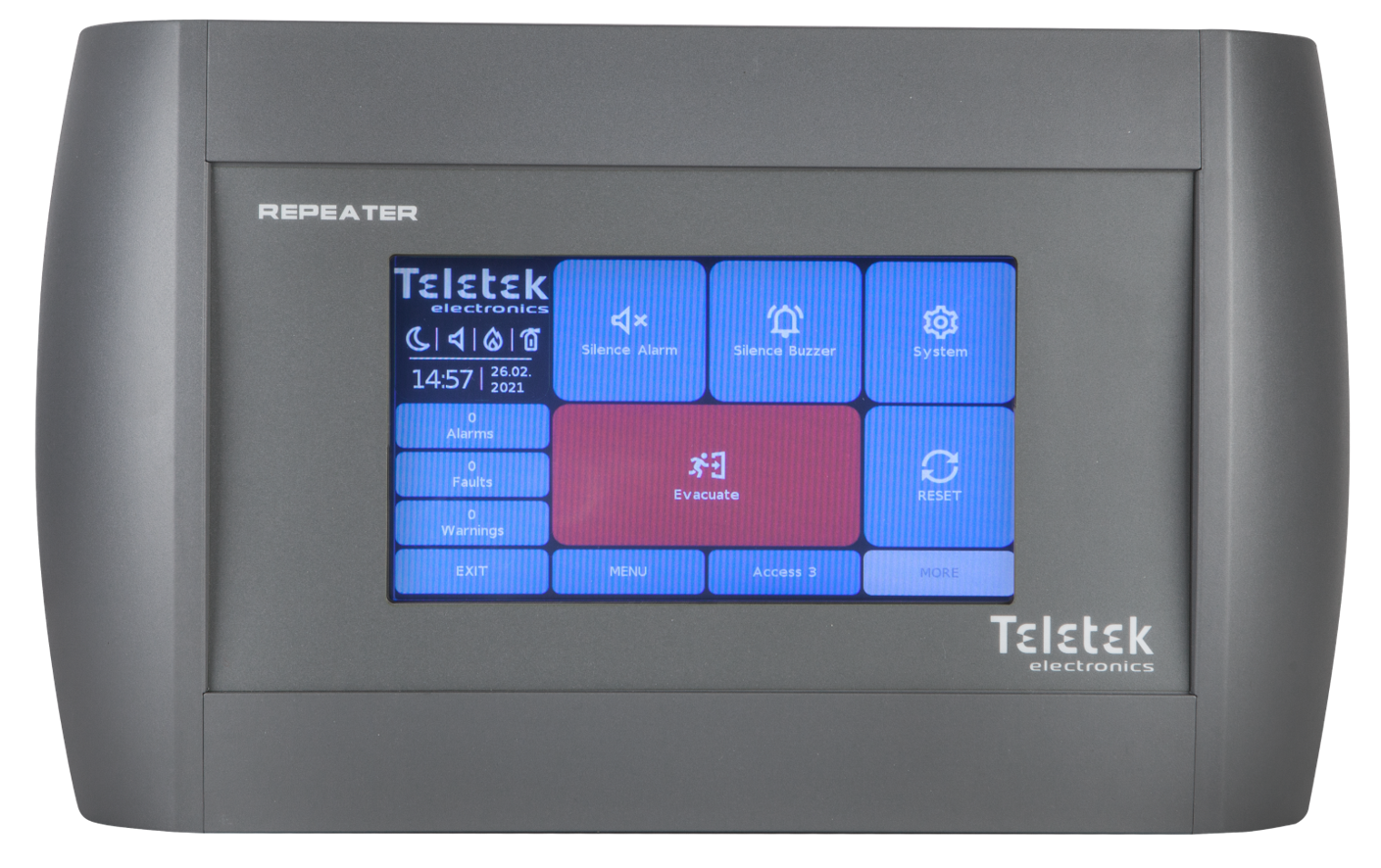

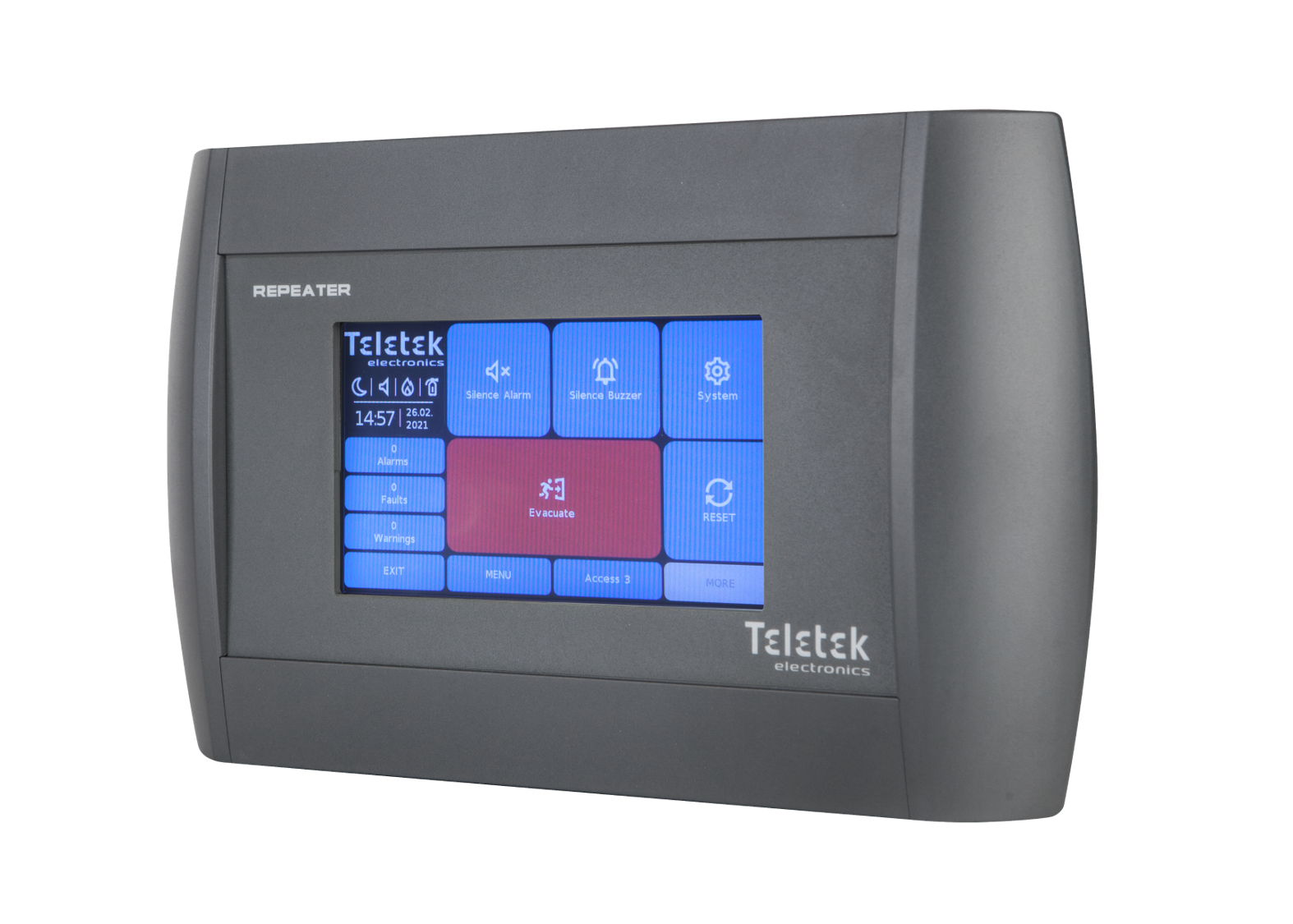

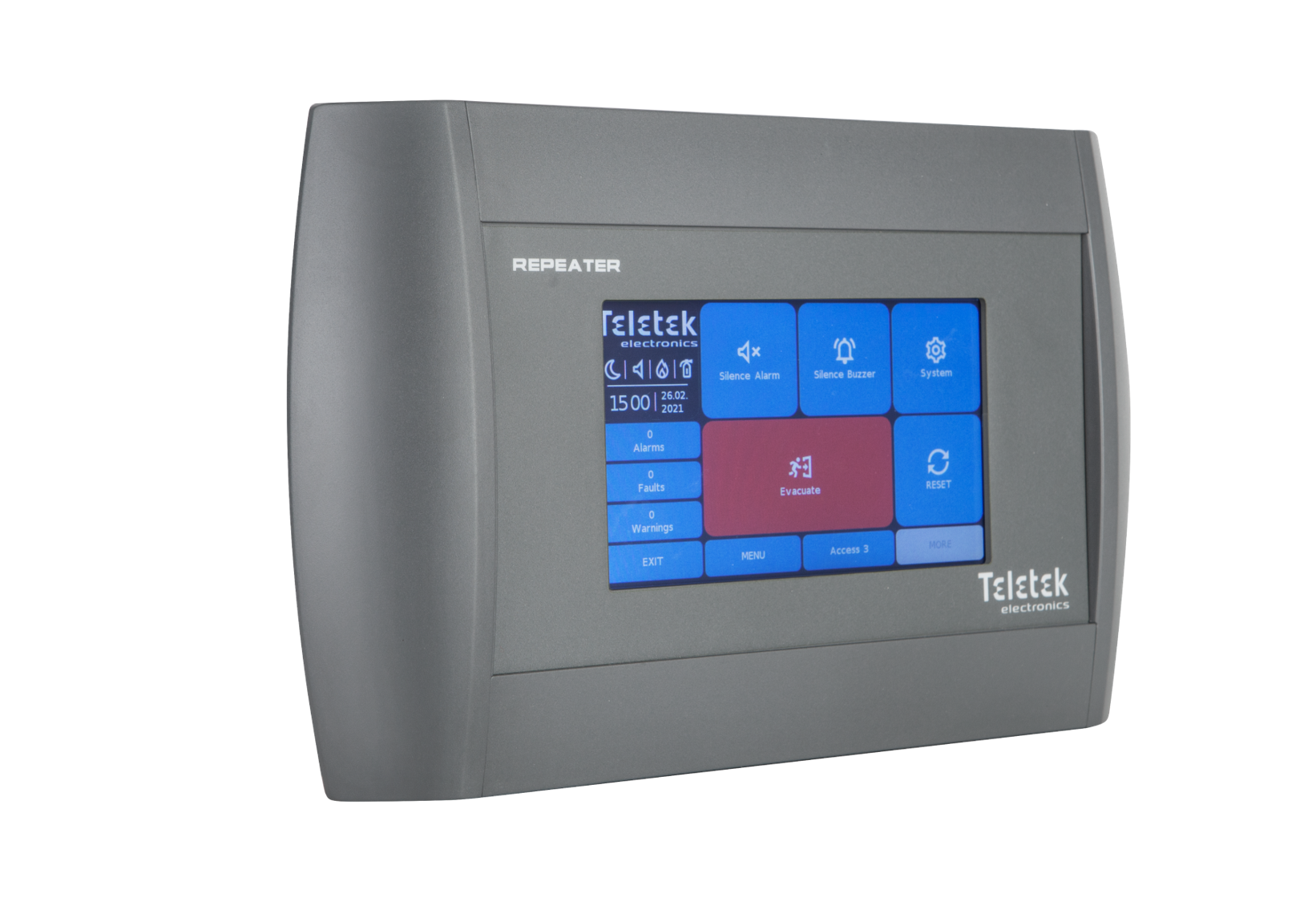

Repeater fire alarm panel with colourful TFT display, supports IRIS series and SIMPO panels; up to 64 panels and repeaters in a network; slim design, Grey plastic housing;
The Repeater is a device that duplicates the information provided by the SIMPO and IRIS addressable fire panels in order to help you get information on the current situation in the premises without having to be physically close to the main panel. The connection between the Repeater panel and the main panels has been obtained by using a redundant network module based on the RS485 interface or a standard LAN network. The monitoring information is displayed on the 7 inch touch screen LCD display. There is also LED indication available. The Repeater panel has a built-in real time clock feature and a micro USB for programming and firmware update.
Description
Touch screen – 7 inch color display
Build in RS485 Network module
Build in LAN module
Up to 64 nodes in network – RS485
Up to 1km distance between the panels
Reset/Evacuate/Silence Sounders and Buzzer of all network panels
IRIS and SIMPO compatible
Slim design
Multilanguage support
10 000 events log
Designed according to EN54 2/4
Changeable logo picture
Power Supply:
From the panel
External power supply unit
AUX/GND
(24±4)VDC
Maximum power consumption
0.11A
Communication
RS 485
Twisted pair cable UTP CAT 5:
Maximum length between repeater and panel
Cross Section
max. 1000m
0.5-2.5mm2
Degree of protection
IP40
Color, Material
Grey, ABS
Operation temperature
-5ºС up to +40ºC
Relative humidity
up to 95% (without condense)
Storage temperature
-10ºС up to +60ºC
Weight
~ 0.5 kg
* All panels requires a battery backup to function; need to be procured separately. Refer specifications for size.
** Price are subject to change at anytime. Please confirm via email as no payment gateway is connected.
