Product Details

Addressable Fire Alarm Panel SIMPO (1 - 2 Loops). The addressable panel supports up to two loops with coverage of 48 zones. 250 devices operating on Teletek Electronics communication protocol could be connected to each loop.

Rs.125000 Rs.135000

  • Stock: In Stock
  • Category : Addressable Fire Detection & Alarm System
  • SKU : 31020036

SIMPO is the perfect solution for smaller addressable installations. The addressable panel supports up to two loops with coverage of 48 zones. 250 devices operating on Teletek Electronics communication protocol could be connected to each loop.

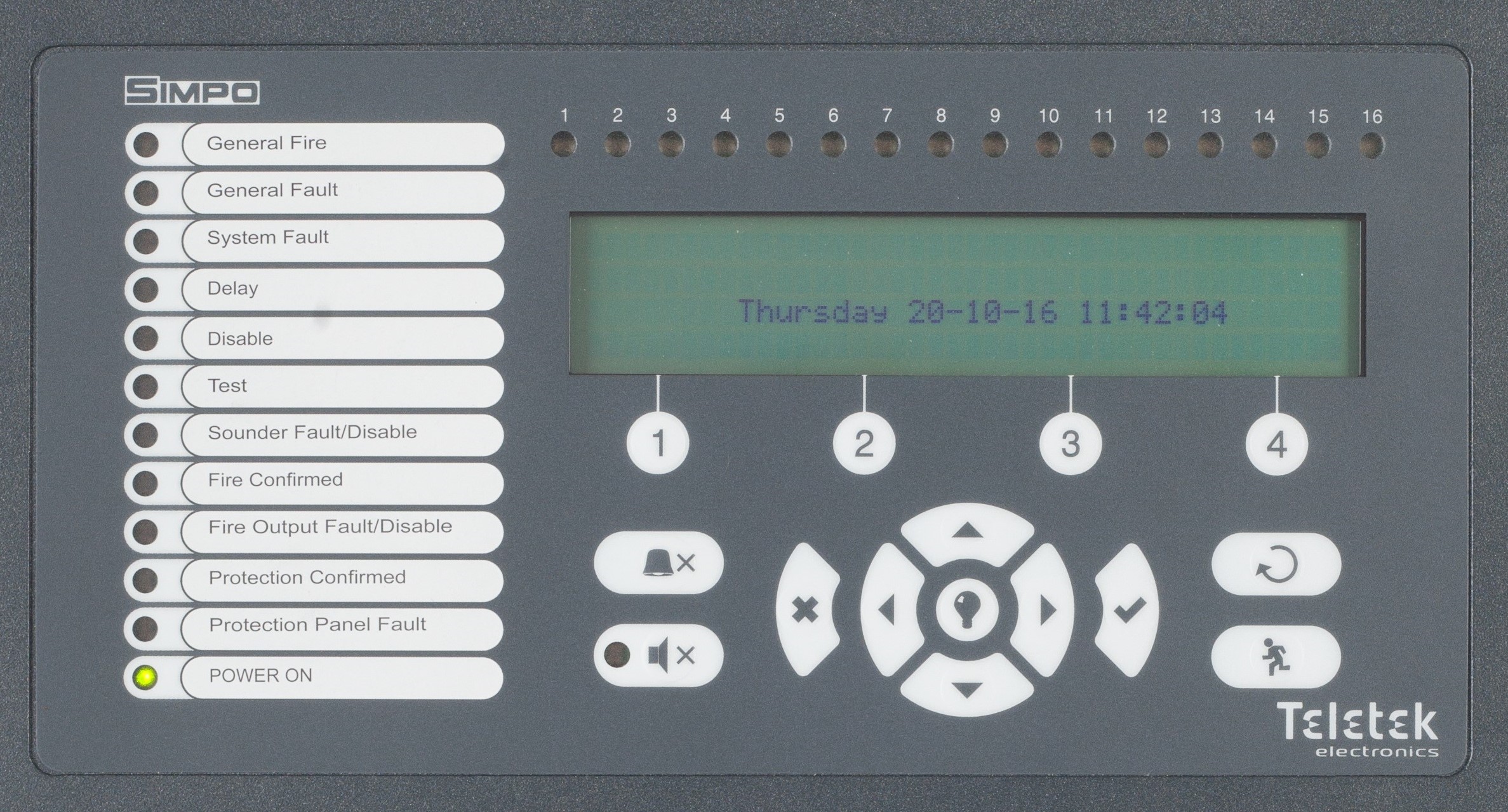

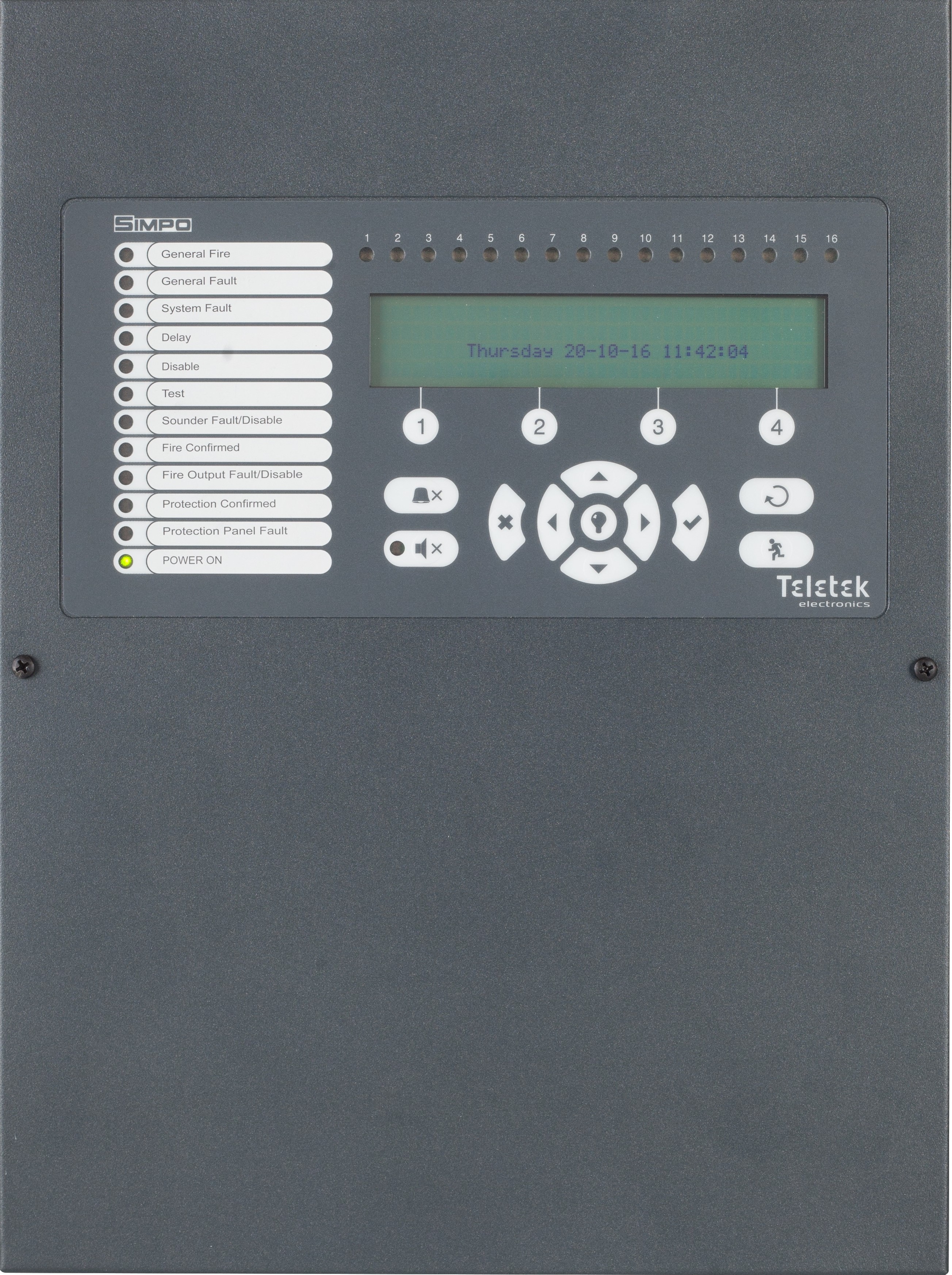

SIMPO is the perfect solution for smaller addressable installations. The addressable panel supports up to two loops with coverage of 48 zones. 250 devices operating on Teletek Electronics communication protocol could be connected to each loop. System status is visualized via LCD display and LED indication. Up to 64 Simpo panels can be connected in RS485 redundant network or Ethernet network. Direct programming with ProsTE software is available. The panel comes in a metal casing with a multilingual LCD display and front foil for easier customization.

Description

  • Loops: Up to 2 (TTE protocol)
  • Devices per loop: 250
  • Zones: 48
  • Inputs: 3
  • Outputs (monitored, relay type): 5
  • Outputs (non monitored, programmable, relay type): 4, 15A@24VDC
  • Memory LOG: 10 240 events
  • Panels in RS485 redundant network (optional module): Up to 64
  • Thermal printer: Optional
  • Display: 4*40 symbols LCD
  • Multi language support: Yes
  • Programming:  ProsTE software
  • Standard: EN54 – 2/4
  • Transmitting events to monitoring software Observer via LAN channel (ModBUS protocol)

Main Power Supply90 ÷ 264 VAC
Frequency47 ÷ 440 Hz
Back-up Power Supply1 battery, 12V/ 18Ah
Electrical output4.2A
Operating temperature-5°C to +40°C
Weight (without battery)4.2kg
Dimensions306x412x81.2mm

* All panels requires a battery backup to function; need to be procured separately. Refer specifications for size.

** Price are subject to change at anytime. Please confirm via email as no payment gateway is connected.



Color Grey
Origin Europe
Material Matel
Seller's Warranty 1 Year
